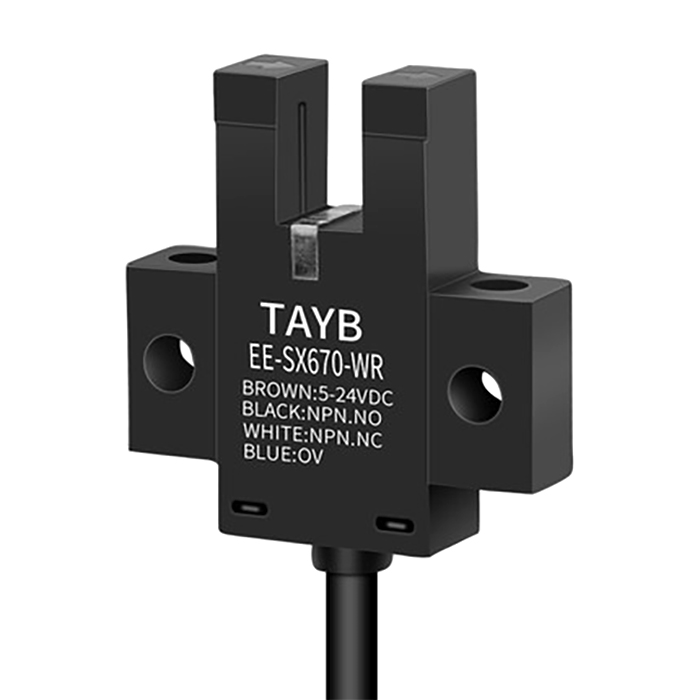

EE-SX670-WR Slot-type Opto Sensor

Description  DetailsModelEE-SX670-WREE-SX671-WREE-SX672-WREE-SX673-WREE-SX674-WRSensing methodThrough-beam with slotThrough-beam with slotThrough-beam with slotThrough-beam with slotThrough-beam with slotType of lightInfrared lightInfrared lightInfrared lightInfrared lightInfrared lightSensor Output Switch TypeNPN – (NO / NC)NPN – (NO / NC)NPN – (NO / NC)NPN – (NO / NC)NPN – (NO / NC)Supply Voltage Min5Vdc5Vdc5Vdc5Vdc5VdcSupply Voltage Max24Vdc24Vdc24Vdc24Vdc24VdcCurrent Consumption Max35mA35mA35mA35mA35mADetection frequency (min)800 Hz800 Hz800 Hz800 Hz800 HzOperating Temperature-25° ∼ 55°C-25° ∼ 55°C-25° ∼ 55°C-25° ∼ 55°C -25° ∼ 55°CSKU11770011177002117700311770041177005Price3.80 €3.80 €3.80 €3.80 €3.80 € ImagePictures, dimensions,table data and technical drawings of this product are made with reasonable care and liability is excluded for the accuracy and correctness of this data.Slot-type photoelectric switch is also a non-contact switch type, it is not limited by the type of detection body. High detection accuracy and detection of small body objects for a very wide range of applications. Fast response for high-speed applications and accuracy.  Wiring  Wire Color       Brown        – Power Supply 5V – 24V       Black         – Signal Output 1 (NO)        White       – Signal Output 2 (NC)        Blue         – Negative Power Supply 0V  NC output NPNNO output NPN  Dimensions
