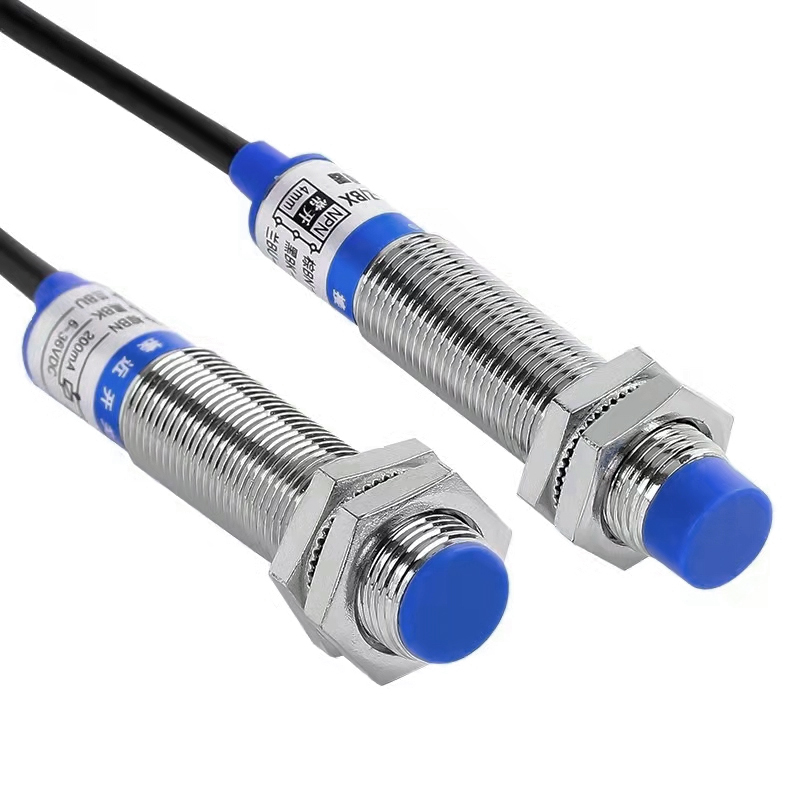

LJ12A3-4-Z Proximity Sensor

Description  DetailsModelLJ12A3-4-Z/BXLJ12A3-4-Z/AXLJ12A3-4-Z/BYLJ12A3-4-Z/AYDetecting Distance Max4mm4mm4mm4mmSensor TypeProximity (Inductive)Proximity (Inductive)Proximity (Inductive)Proximity (Inductive)Sensor Output Switch TypeNPN – Normally open (NO)NPN – Normally closed (NC)PNP – Normally open (NO)PNP – Normally closed (NC)Supply Voltage Min6Vdc6Vdc6Vdc6VdcSupply Voltage Max36Vdc36Vdc36Vdc36VdcCurrent Consumption Max300mA300mA300mA300mARepeated precision0.01mm0.01mm0.01mm0.01mmIP RatingIP67IP67IP67IP67Operating Temperature-25° ∼ 75°C-25° ∼ 75°C-25° ∼ 75°C-25° ∼ 75°CMaterialMetalMetalMetalMetalSKU1176001117600211760031176004Price2.80 €2.80 €2.80 €2.80 €Pictures, dimensions,table data and technical drawings of this product are made with reasonable care and liability is excluded for the accuracy and correctness of this data.This inductive proximity sensor will detect the prescence of a metallic object within 4mm of the surface of the sensor. The detection distance may vary slightly depending on the shape, size, and type of metal the object is made of. It can detect through thin, non-metallic materials and has an LED indicator that turns on when the device is powered, and increases in brightness when an object is detected.  Wiring  Wire Color                Brown               – Power Supply 5V – 30V                Black                 – Signal Output                 Blue                 – Negative Power Supply 0V As an option, there are also sensors with combined NO and NC outputs , they have an additional WHITE output wire.  Dimensions
