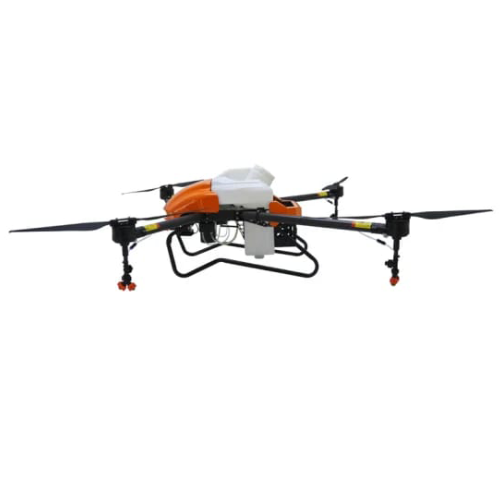

Description Overview GAOtek-FPV Spraying Drone is equipped with a new imaging radar, which is not affected by ambient light and dust, and can sense the farmland environment all day long. It supports forward and backward two-way obstacle avoidance, and the horizontal detection Angle reaches 100°, which is doubled compared with the previous generation, and flight safety is greatly improved. Equipped with digital beam synthesis technology, 3d point cloud imaging can be realized, complex farmland scenes can be effectively identified in operation, and autonomous obstacle circling flight can be realized. The radar supports terrain slope detection, and mountain slopes can be imitated for ground flight. Features First Person View (FPV) Camera Precision Spraying System Remote Piloting with Live Video Feed Efficient and Targeted Liquid Application Agricultural Crop Management Reduced Chemical Usage Adjustable Spray Patterns GPS Navigation Terrain Following Capability Customizable Flight Paths Technical Specifications Product expansion size 72.44 in x 72.44 in x 20.87 in (1840 mm x 1840 mm x 530 mm) Product folding size 29.13 in x 14.57 in x 20.87 in (740 mm x 370 mm x 530 mm) Packaging size 35.43 in x 17.72 in x 23.62 in (900 mm x 450 mm x 600 mm) Maximum takeoff weight 112.44 lb (51 kg) Aircraft weight 41.89 lb (19 kg) Pesticide Barrel 6.6 ga (25 L) Flight altitude ≤ 98.43 ft (≤30 m) Fly time (unloaded) 20 min to 25 min Fly time (loaded) 10 min to 18 min (when fully loaded) Flight speed 3.28 ft/s to 65.62 ft/s (1 m/s to 20 m/s) Structure lift span ≥ 10 years Spray width 13.12 ft to 26.25 ft (4 m to 8 m) Hovering in the air Hovering in any direction Spray flow 0.79 ga/min to 2.11 ga/min (3 L/min to 8 L/min) double pump adjustable Spray system Imported high-pressure anti-floating atomizing nozzle Atomization point size 0.0024 in to 0.0197 in (0.06 mm to 0.5 mm) Fly control Industrial Version GPS and Controller Spray efficiency 24.71 ac/hr to 29.65 ac/hr (10 ha/hr to 12 ha/hr) Motor speed 5000 rpm Power system 60.9 V power polymer computer battery Charger AC Input 100 V to 240 V Lithium-polymer battery 20000 mAh x 1
