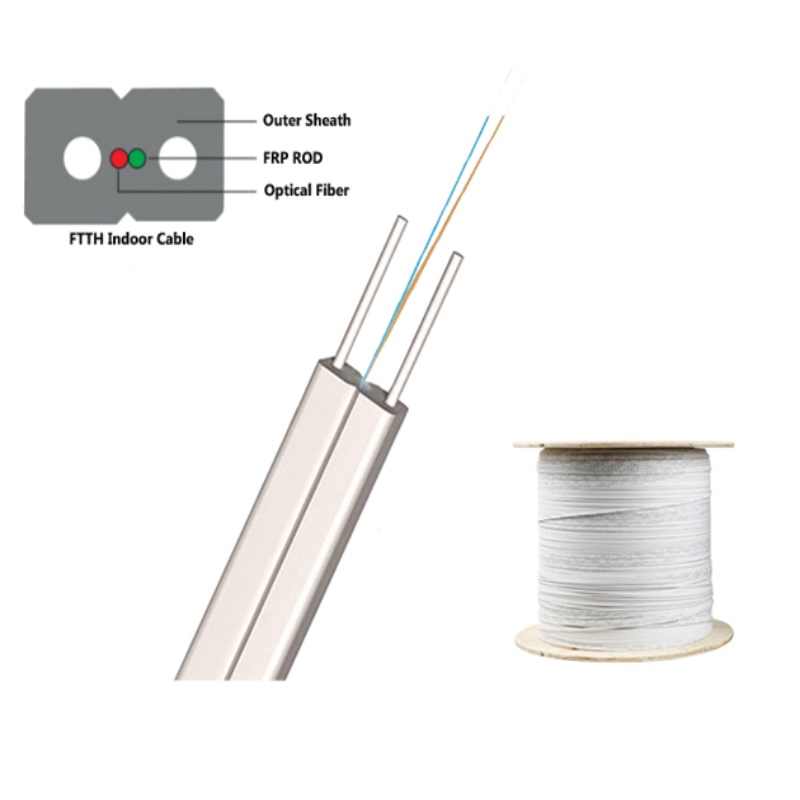

Description The Avalon 04 Core Single-Mode FTTH Flat Indoor Fiber Optic Drop Cable (G.657A1, LSZH Sheath) is a high-performance solution for fiber-to-the-home (FTTH) and indoor optical network installations. Designed with G.657A1 bend-insensitive fiber, this cable delivers stable and efficient optical signal transmission even in tight spaces or sharp bends — ensuring consistent high-speed connectivity. Built with four cores, this Avalon fiber optic cable supports greater capacity for multi-line or backup fiber routes, ideal for residential, commercial, and office networks. The Low Smoke Zero Halogen (LSZH) sheath ensures safety, low smoke emission, and environmental protection. Its flat, compact structure makes installation quick, flexible, and space-saving. Avalon 04 Core, Single-Mode, FTTH Flat Indoor, Fiber Optic Drop Cable – G.657A1 – LSZH Sheath Specifications Feature Details Brand Avalon Type FTTH Flat Indoor Fiber Optic Drop Cable Fiber Type Single-Mode (G.657A1) Core Count 4 Core Construction Flat Type with Two FRP Strength Members Jacket Material LSZH (Low Smoke Zero Halogen) Sheath Colour White / Black (as per model) Cable Shape Flat Outer Dimension Approx. 2.0 × 5.0 mm Tensile Strength ≥ 100 N Crush Resistance ≥ 500 N/100 mm Attenuation (1310 nm / 1550 nm) ≤ 0.36 dB/km / ≤ 0.22 dB/km Minimum Bending Radius 10 mm (static), 20 mm (dynamic) Temperature Range -20°C to 70°C Compliance ITU-T G.657A1 / IEC 60794 / RoHS Applications FTTH, FTTB, PON, and Indoor Data Networks Why Choose Avalon 04 Core FTTH Fiber Optic Cable 4-core single-mode fiber allows for multiple network connections or redundancy. Bend-insensitive G.657A1 fiber ensures stable performance in compact routes. LSZH jacket provides superior fire safety and eco-friendliness. Flat and flexible design for easy indoor routing and installation. Low signal attenuation ensures excellent data transmission quality. FRP strength members add durability and mechanical protection. Ideal for residential, office, and building networks. Lightweight and easy to manage, saving time during installation. Fully compliant with international standards. Reliable Avalon build quality for long-lasting performance.
