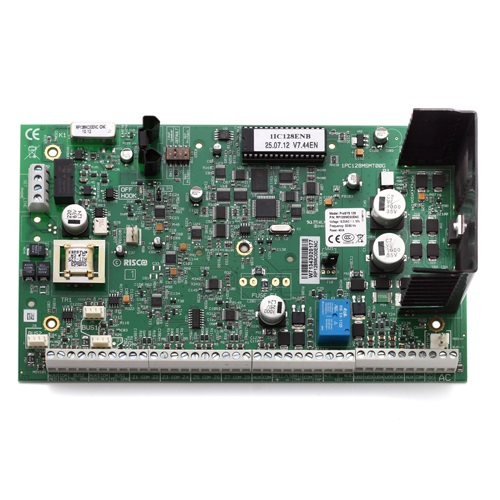

8 zones expandable up to 128 4 or 8 system partitions Auto-Install™ technology assures simple installation Bus test for pinpointing faulty wiring Triple EOL termination for Grade 3: Allows alarm, tamper and mask on each single zone 4 groups per partition – enabling partial arming of a group of zones within a partition Up to 32 schedules for arm/disarm and output control, supporting 2 intervals per day High security features such as double password, keypad disable during scheduled arm, and 2 separate buses 6 fully programmable utility outputs onboard – one 3A relay, one 500mA open collector and four 70mA O.C. False alarm prevention features – such as fire alarm verification, programmable swinger shutdown, cross zoning, pulse counting, transmission delay, audible/visual exit delay One-man walk test Watchdog periodically performs self-test of the system Up to 99 user codes Up to 999 event log Box tamper Bell/Siren tamper Built in Siren Driver (900 mA) Automatic fuses Model names: RP128 ProSYS™ 128 RP140 ProSYS™ 40 RP116 ProSYS™ 16
