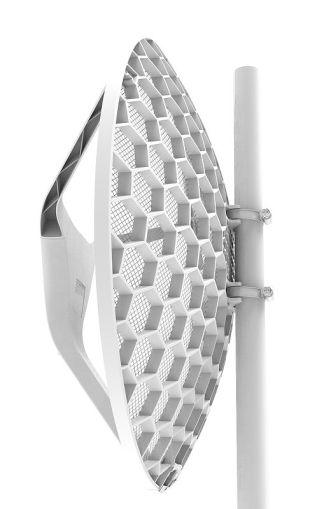

LHG XL 5 ac - RBLHGG-5acD-XL

Details Product code RBLHGG-5acD-XL Architecture ARM 32bit CPU IPQ-4018 CPU core count 4 CPU nominal frequency 716 MHz Dimensions Ø 550 x 245 mm; License level 3 Operating System RouterOS Size of RAM 256 MB Storage size 16 MB Storage type FLASH Tested ambient temperature -40°C .. 70°C Suggested price $99.00   Powering Details Max Power consumption 8W PoE in Passive PoE PoE in input Voltage 10-30 V Number of DC inputs 1 (PoE-IN)   Wireless Details Wireless 5 GHz number of chains 2 Wireless 5 GHz standards 802.11ac Antenna gain dBi for 5 GHz 27 Wireless 5 GHz chip model IPQ-4018   Ethernet Details 10/100/1000 Ethernet ports 1 Ethernet test results RBLHGG-5acD-XL IPQ-4018 1G one port test Mode Configuration 1518 byte 512 byte 64 byte kpps Mbps kpps Mbps kpps Mbps Bridging none (fast path) 82.2 998.2 243.9 999.0 1483.0 759.3 Bridging 25 bridge filter rules 82.2 998.2 215 880.6 217.5 111.4 Routing none (fast path) 82.2 998.2 243.9 999.0 1489.5 762.6 Routing 25 simple queues 82.2 998.2 243.9 999.0 364.9 186.8 Routing 25 ip filter rules 82.2 998.2 155.1 635.3 151.3 77.5 All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544) Max throughput is determined with 30 second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results Wireless specifications 5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 25 -96 54MBit/s 21 -80 MCS0 25 -96 MCS7 20 -75 MCS9 18 -70     Included parts 24V 0.38A power adapter Metal rings (two) Gigabit PoE injector K-LHG kit
