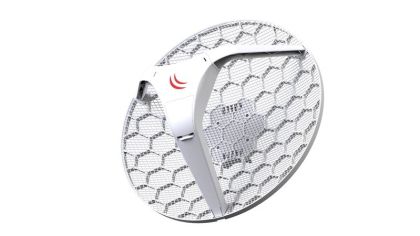

MikroTik LHG 5 - RBLHG-5nD

Product specifications Details Product code RBLHG-5nD CPU nominal frequency 600 MHz CPU core count 1 Size of RAM 64 MB 10/100 Ethernet ports 1 Wireless standards 802.11a/n Wireless chip model AR9344 PoE in Yes Supported input voltage 11 V - 30 V Dimensions Ø 391 x 222 mm; package 450 x 450 x 145 mm Operating System RouterOS Operating temperature range -40 to 70° C License level 3 Antenna gain DBI 24.5 CPU AR9344 Max Power consumption 6W Number of chains 2 Storage type FLASH Storage size 16 MB Suggested price $59 Wireless specifications 5 GHz   TX RX 6MBit/s 25 -96 54MBit/s 20 -80 MCS0 25 -96 MCS7 19 -75 wireless parameters may be limited in software, depending on your local regulatory limitations   Performance test results RBLHG-5nD AR9344 100M 1 port test Mode Configuration 1518 byte 512 byte 64 byte kpps Mbps kpps Mbps kpps Mbps Bridging none (fast path) 8.1 98.4 23.5 96.3 148.0 75.8 Bridging 25 bridge filter rules 8.1 98.4 23.5 96.3 87.6 44.9 Routing none (fast path) 8.1 98.4 23.5 96.3 148.0 75.8 Routing 25 simple queues 8.1 98.4 23.5 96.3 106.6 54.6 Routing 25 ip filter rules 8.1 98.4 23.5 96.3 60.5 31.0 All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544) Max throughput is determined with 30 second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
