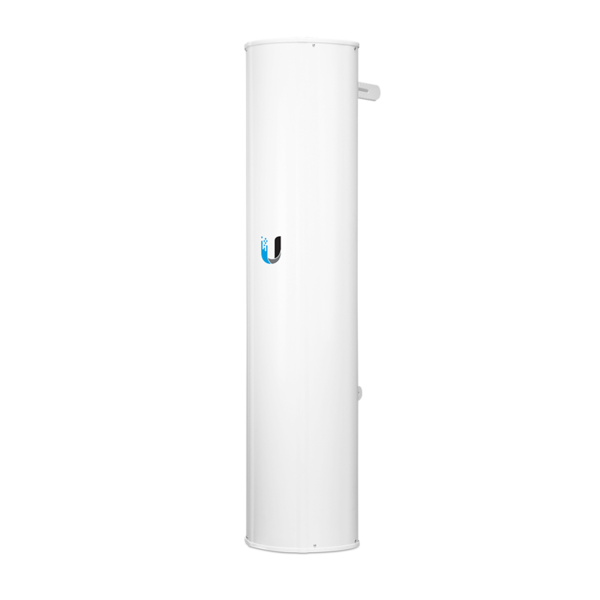

Description AP-5AC-90-HD Dimensions (Mount Included) 322.6 x 201.5 x 1300 mm (12.7 x 7.93 x 51.18″) Weight (Mount Included) 13.1 kg (28.9 lb) Frequency Range 5.15 – 5.85 GHz Gain 22 dBi HPOL Beamwidth 3 x 30° (6 dB) VPOL Beamwidth 3 x 30° (6 dB) Elevation Beamwidth 8° Electrical Downtilt 2° Polarization Dual-Linear Max. VSWR 1.75:1 Wind Survivability 200 km/h (125 mph) Wind Loading 534 N @ 200 km/h (120 lbf @ 125 mph) Interfaces (6) RP-SMA Connectors (Weatherproof) Compatible Radio Rocket5ac Prism Mounting Pole Mount (Kit Included) ETSI Specification EN 302 326 DN2 Certifications CE, FCC, IC 3 x 30° Beamwidth Coverage The three Rocket5ac Prism™ radios are installed at the top, middle, and bottom of the airPrism antenna. Each radio independently transmits and receives within its corresponding 30° beamwidth. Powerful Performance Highly resistant to noise interference, the airPrism antenna provides superior beam performance in high-density areas for high-capacity, multipoint networks. Breakthrough Design Mounted on a single airPrism antenna, three Rocket5ac Prism radios maximize throughput in an efficient tower footprint, minimizing installation and tower costs.
