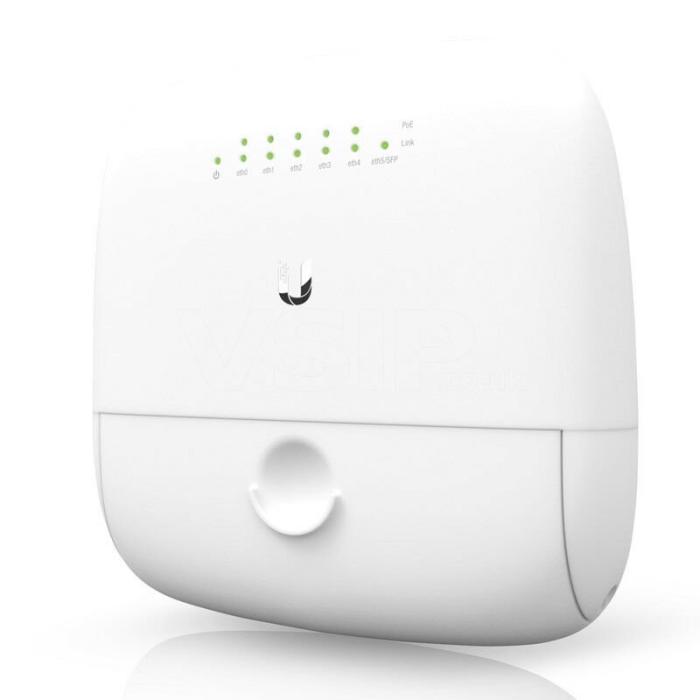

Ubiquiti EdgePoint EP-S16 WISP Control PointUbiquiti Networks introduces the EdgePoint, part of the EdgeMAX platform. The first application-specific designed WISP control point, the EdgePoint combines the advanced routing capabilities of EdgeMAX with fiber backhaul and versatile powering capabilities. The EP-S16 is a Layer-2 switch with some layer-3 capabilities.Product Features • Breakthrough in Tower Deployment: EdgePoint features FiberProtect to significantly reduce ESD failures and EMI • All-in-One Design: A single, compact controller efficiently eliminates clutter • Robust Construction: The ruggedized case withstands outdoor conditions, including wind, rain, and snow • Advanced Applications: Layer-2 link aggregation provides similar redundancy and increased performance benefits • Versatile Power Options: Powered by 54VDC or by PoE, the EP-S16 can support 54 or 24V passive PoE to power all Ubiquiti products, including airFiber and airMAXProduct Specifications • Dimensions: 326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50″) • Dimensions (w/ Wall Mount): 326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15″) • Weight: 3.4 kg (7.50 lbs) • Weight (w/ Wall Mount): 3.8 kg (8.38 lbs) • Enclosure Characteristics: Diecast Aluminum Alloy and Polycarbonate with UV Resistance • Max. Power Consumption: 40W (Excludes PoE Output) • Power Input: (1) DC Terminal Block or (2) RJ45 (Ports 1 and 2) • Power Supply: Min. 54V / 0.8A (Excludes PoE Output Power) • VDC Input: 54VDC, 6A • Passive PoE Input: (2) 54V/1.5A, 4-Pair ( 1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 and 2 • Passive PoE Output: (4) 54V/1.5A, 4-Pair ( 1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 to 4 ; (12) 802.3af/at or 24V/0.7A, 2-Pair ( 4, 5; -7, 8) Passive PoE, Ports 5 to 16 • Power Monitoring: (1) DC Terminal Block, Input Power ; (2) RJ45, Ports 1 and 2, PoE Input or Output Power ; (14) RJ45, Ports 3 to 16, PoE Output Power • Supported Voltage Range: 56 to 42VDC • Button: Reset • Processor: ARM Cortex-A9 400 MHz • System Memory: 256 MB DDR3 RAM • Code Storage: 32 MB • Certifications: CE, FCC, IC • Pole/Wall Mount: Yes • Operating Temperature: -40 to 65°C (-40 to 149°F) • Operating Humidity: 10 to 90% NoncondensingProduct Includes • (1) EP-S16 EdgePoint Switch • (1) Wall-Mount Bracket • (2) Metal Straps • (1) Cable Sleeve • (1) Gigabit PoE (54V, 1.5A) with Mounting Bracket • (1) Power Cord • (1) Quick Start GuideDatasheet and Quick Start Guide EP-S16 Datasheet EP-S16 Quick Start GuideAlso checkUbiquiti EdgePoint EP-R8 WISP Control Point Layer-3 RouterUbiquiti EdgeMAX EdgeRouter X SFPUbiquiti EdgePoint POE-54V-80W-KIT POE Adapter
