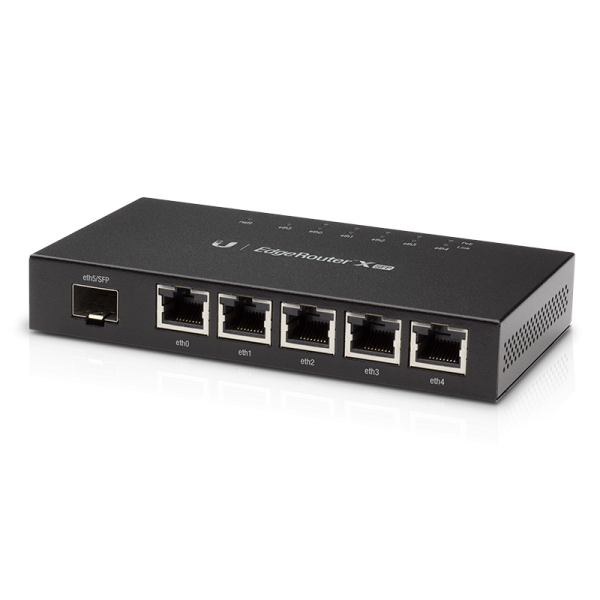

Description EDGEROUTER Dimensions 142 x 75 x 23 mm (5.59 x 2.95 x 0.91″) Weight 215 g (7.58 oz) Max. Power Consumption 5W Power Input 24VDC, 2.5A Power Adapter (Included) Power Supply External AC/DC Adapter Supported Voltage Range 9 to 26VDC Buttons Reset LEDs Power, Link/Activity (6), PoE (5) Processor Dual-Core 880 MHz, MIPS1004Kc Memory 256 MB DDR3 RAM Code Storage 256 MB NAND Certifications CE, FCC, IC Wall Mount Yes Operating Temperature -10 to 45° C (14 to 113° F) Operating Humidity 10 to 90% Noncondensing NETWORKING INTERFACES Data/PoE Input Port (5) 10/100/1000 RJ45 Ports Data Port (1) 100/1000 SFP Port POE WITH 24VDC POWER ADAPTER PoE Out Voltage Range 22-24VDC Max. PoE Wattage Per Data Port 12W (24V) Max. PoE Wattage Combined for All 5 Data Ports 50W PoE Method Passive
