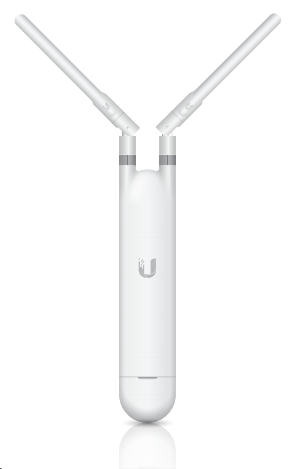

UAP-AC-M, UniFi AC Mesh

Zoom in   Zoom inOverview Dimensions 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4") WiFi Standard WiFi 5 Spatial Streams 4 Coverage Area 140 m² (1,500 ft²) Max. Client Count 200 Uplink GbE Mounting Wall, Pole (Mounts Included) Weatherproofing IPX4 Power Method PoE     Performance MIMO     5 GHz 2 x 2 (DL MU-MIMO)     2.4 GHz 2 x 2 (DL MU-MIMO) Max. Data Rate     5 GHz 867 Mbps (BW80)     2.4 GHz 300 Mbps (BW40) Antenna Gain     5 GHz 4 dBi     2.4 GHz 3 dBi Max. TX Power     5 GHz 20 dBm     2.4 GHz 20 dBm Max. BSSIDs 8 per Radio Supported Data Rates     802.11ac (WiFi 5) 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)     802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)     Features Wireless Meshing ✓ Band Steering ✓ 802.11v BSS Transition Management ✓ 802.11r Fast Roaming ✓ 802.11k Radio Resource Management (RRM) ✓ Advanced Radio Management ✓ Passpoint (Hotspot 2.0) ✓ Captive Hotspot Portal     Custom Branding Landing Page ✓     Voucher Authentication ✓     Payment-Based Authentication ✓     External Portal Server Support ✓     Password Authentication ✓     Guest Network Isolation ✓ Private Pre-Shared Key (PPSK) ✓ WiFi Speed Limiting ✓ Client Device Isolation ✓ WiFi Schedules ✓ RADIUS over TLS (RadSec) ✓ Dynamic RADIUS-assigned VLAN ✓     Hardware Max. Power Consumption 8.5W Includes PoE Adapter ✓ Supported Voltage Range 44—57V DC Networking Interface (1) GbE RJ45 port Weight 152 g (5.4 oz) Pole Mount Diameter 1–3" (25–76 mm) Management Ethernet Bluetooth Enclosure Material Polycarbonate Channel Bandwidth HT 20/40, VHT 20/40/80 (MHz) NDAA Compliant ✓ Certifications CE, FCC, IC, UKCA, Anatel Operating Frequency US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz Ambient Operating Temperature -30 to 70° C (-22 to 158° F) Ambient Operating Humidity 5 to 95% noncondensing     Software Application Requirements     UniFi Network Version 6.0.45 and later
