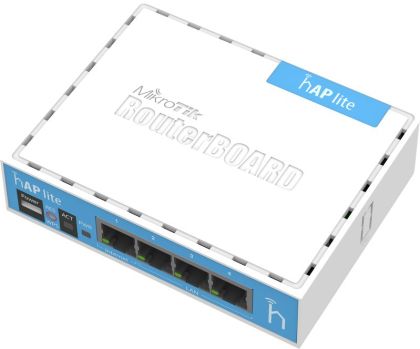

The home Access Point lite (hAP lite) is an ideal little device for your apartment, house or office. It supports button triggered WPS, for the convenience of not typing a complicated password when somebody wants to have wireless internet access, and can also be told to change to cAP mode and join a CAPsMAN centrally managed network by the push of a button. Of course, the device runs RouterOS with all the features, bandwidth shaping, firewall, user access control and many others. The hAP lite is equipped with a powerful 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports and a RouterOS L4 license. USB power supply is included. Product specifications Details Product code RB941-2nD CPU nominal frequency 650 MHz CPU core count 1 Size of RAM 32 MB 10/100 Ethernet ports 4 10/100/1000 Ethernet ports None MiniPCI slots 0 MiniPCI-e slots 0 Wireless chip model QCA9531-BL3A-R Wireless standards 802.11b/g/n Number of USB ports 0 Power Jack 1 Supported input voltage 5 V - 5 V PoE in No PoE out No Voltage Monitor No PCB temperature monitor No CPU temperature monitor No License level 4 Antenna gain DBI 1.5 Current Monitor No CPU QCA9531-BL3A-R Max Power consumption 3W SFP ports None SFP ports None Number of chains 2 Serial port None Suggested price $21.95 Wireless specifications 2.4 GHz TX RX 1MBit/s 22 -96 11MBit/s 22 -89 6MBit/s 20 -93 54MBit/s 18 -74 MCS0 20 -93 MCS7 16 -71 wireless parameters may be limited in software, depending on your local regulatory limitations Performance test results RB941-2nD QCA9531 100M all port test Mode Configuration 1518 byte 512 byte 64 byte kpps Mbps kpps Mbps kpps Mbps Bridging none (fast path) 32.5 394.8 94.0 385.0 173.6 88.9 Bridging 25 bridge filter rules 32.5 394.8 56.1 229.8 56.7 29.0 Routing none (fast path) 32.5 394.8 94.0 385.0 160.8 82.3 Routing 25 simple queues 32.5 394.8 63.7 260.9 72.6 37.2 Routing 25 ip filter rules 32.5 394.8 33.8 138.4 34.6 17.7 All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544) Max throughput is determined with 30 second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
