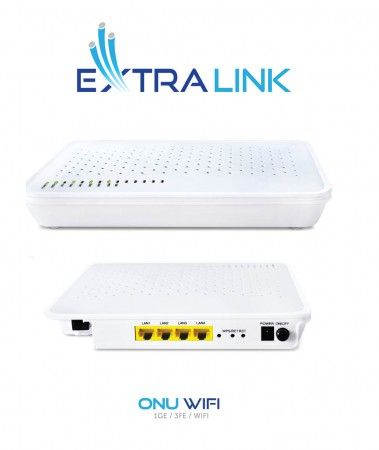

WiFi ONU (2GE 2FE WiFi) is an EPON ONU terminal designed specially for TriplePlay services. Physical Gigabit ports LAN1 and LAN2 are designed for IPTV, VoIP, etc. Services. They are connected directly to PON chipset, and configuration is made on central OLT unit using CTC mechanizm. Those ports are mostly configured as ends of VLANs transmited through PON network. „Second part” of ONU is designed to Internet access. Physical ports LAN2, LAN3 and WiFi module are managed by Realtec chipset, which WAN port is internally connected to third port of PON chipset. WAN port may be VLAN end or PPPoE end or even both. Ports LAN3, LAN4 and WiFi have they own software with standard Router WiFi functionality. Depending on operator policy, access to this software may be given to customer without consequences of other services malfunction (provided on LAN1 and LAN2 ports). Item Parameter Specification Optical interface specification Transmission rate = Downstream:1.25 Gbps = Upstream:1.25 Gbps Optical specifications = Downstream – Wavelength:1490nm /-20nm – Minimum receiver sensitivity:-27dBm – Receive saturation power:-3dBm = Upstream – Wavelength:1310nm /-50nm – Minimum output optical power:0dBm Number of users can be connected Up to 32 users within 20km. PON connector SC/PC Optical physical conditions = IEEE802.3-2005 = 1000 BASE-PX20 Optical fiber G.652 single-mode fiber Ethernet interface specification standard = IEEE802.3 = IEEE802.3u = IEEE802.3x Port number 2 GE— ONU Port 2 LAN— Router LAN Port Connector type RJ-45 LAN = IEEE 802.3 = 10/100BASE-T, = Automated negotiation = Full duplex/Half duplex = Support RJ-45 MDI/MDIX VLAN IEEE802.1q Support the connection distance Up to 100 meters WLAN specification WLAN Compliant with IEEE802.11b/g/n EMC and safety EMC EN55022 B(CISPR 22B) ESD defend and preserve IEC 61000-4-2 GR-1089-CORE Laser eye safety l FDA 21CFR 1040.10 和1040.11 l EN(IEC) 60825-1 l EN(IEC) 60825-2 Environment-protection standard RoHS Environmental requirements Running temperature -10ºC~55ºC Storage temperature -30ºC~60ºC Operating humidity 10%~90% ,on-condensing Storage humidity 5%~95% ,Non-condensing Power Power Supply DC12V/1A Power consumption Max 10W Physical specifications Size L x W x H:245 mm x 150 mm x 37mm Weight <500g
