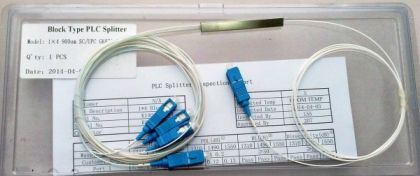

1:4 PLC SPLITTER SC/UPC 900UM 1.5M
$ 69.36
Technical Parameter for 1*N Item 1x2 1x4 1x8 1x16 1x32 1x64 1x128 Fiber Type G.657.A Working Wavelength 1260nm~1650nm Max. Insertion Loss (dB) ≤4.1 ≤7.4 ≤10.5 ≤13.8 ≤17.1 ≤20.4 ≤23.8 Uniformity (dB) ≤0.8 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0 Wavelength Dependent Loss (dB) ≤0.8 ≤0.8 ≤0.8 ≤1.0 ≤1.0 ≤1.0 ≤1.2 Return Loss (dB) ≥50 ≥50 ≥50 ≥50 ≥50 ≥50 ≥50 Directivity (dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55 ≥55 Note: The above parameter is for Splitter with connector. If w/o connector, insertion loss will reduce by 0.2dB
