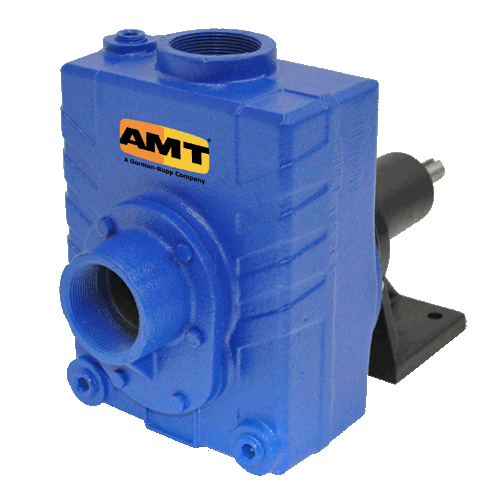

Description AMT Self-Priming Centrifugal Pedestal pumps are designed for a wide range of industrial, agricultural and commercial applications. Dual volute design reduces radial load on bearings and motor. Heavy duty cast iron construction with Buna-N seals or stainless steel with Viton® seals. Pumps are fitted with a self-cleaning, semiopen impeller and are coupled to a heavy duty cast iron bearing housing with a CNC machined keyed shaft extension and sealed ball bearings. The pump has been designed for either direct connection or belt drive. The maximum recommended RPM is 4,000. • Cast Iron & Stainless Steel Construction • Buna-N Mechanical Seals on Cast Iron Models • Viton® Mechanical Seals on Stainless Steel Models • Optional Silicon Carbide Mechanical Seals Available • 1-1/4˝, 1-1/2˝ or 2˝ NPT Suction and Discharge Port Sizes • Dual Volute Design Reduces Radial Load on Motors • Maximum Temperature ◆ Buna-N 180° F ◆ Viton® 200° F • Self-Cleaning, Semi-Open Impeller • Heavy Duty Cast Iron Pedestal Drive with Sealed Ball Bearings
