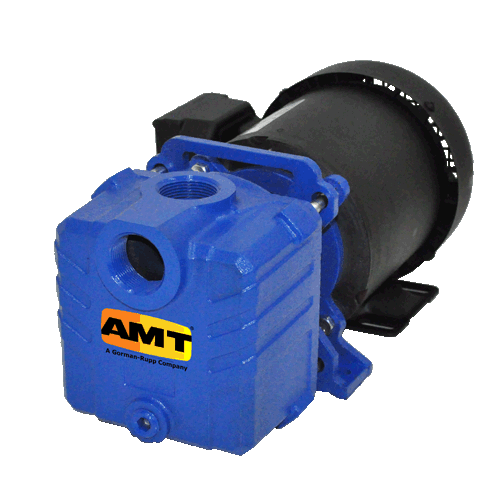

Description The AMT Self-Priming Cast Iron Centrifugal pumps are designed for circulating, boosting, washdown, liquid transfer and dewatering applications. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with self-cleaning, semi-open impeller. The units will selfprime to 20 feet. Mounting base features 7/16″ mounting holes, which are 6″ OC (on center). Built-in carrying handle offers portability. • Cast Iron Construction • Buna-N Mechanical Seal and O-Ring • Optional Viton® or Silicon Carbide Mechanical Seal and O-Ring • 1˝ & 1-1/4˝ NPT Suction and Discharge Ports • Maximum Temperature 180° F • Maximum Flow 82 GPM • Maximum Head 70 Ft. • Self-Priming to 20 Ft. • Self-Cleaning, Semi-Open Impeller • 1/3 to 1-1/2 HP Single or Three Phase Motors
