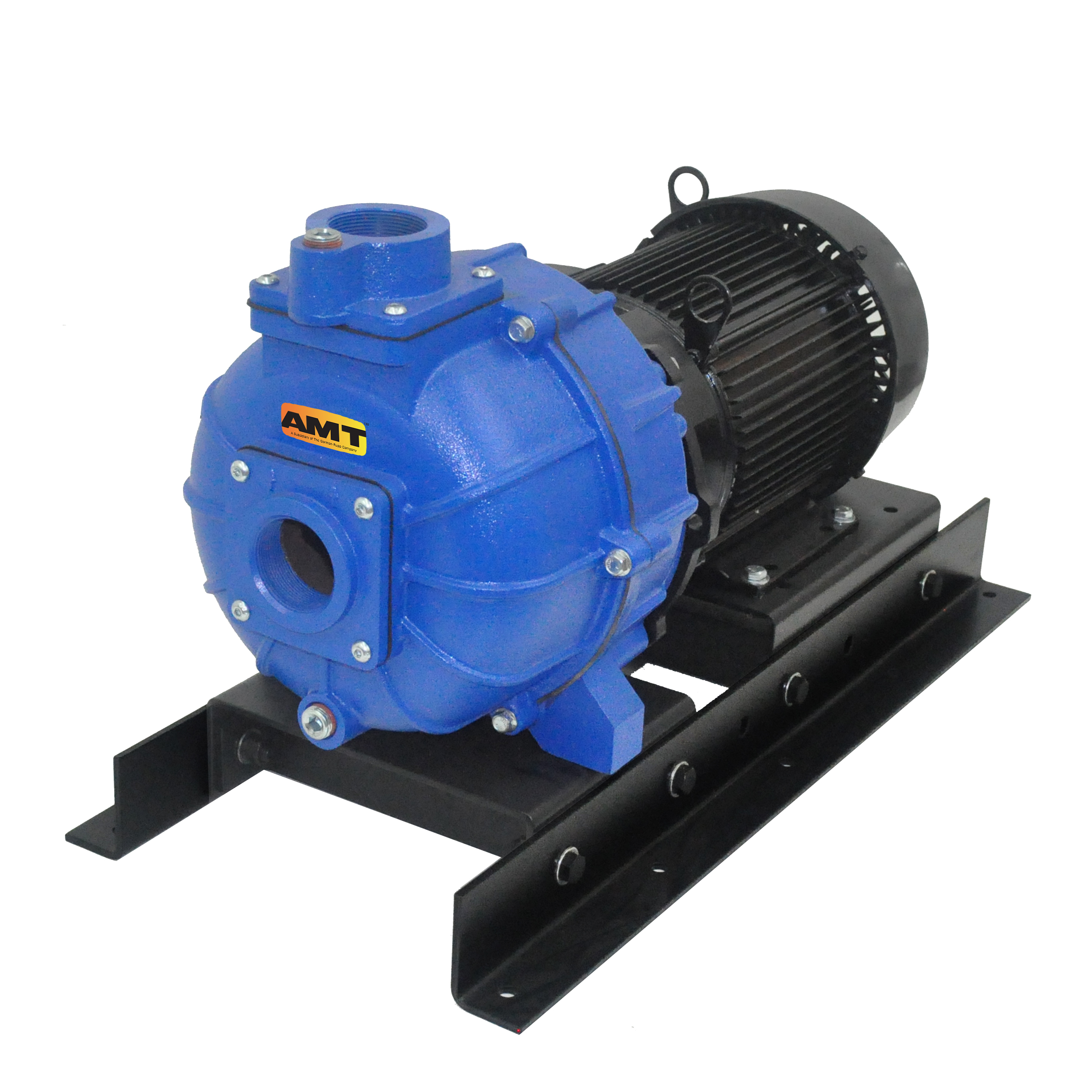

Description NEW FOR 2019 AMT 2” Self Priming High Pressure Pumps are self-priming high pressure booster pumps with a two stage impeller design to provide additional pressure. All models feature cast iron construction with aluminum impellers and Viton Mechanical Seals. Built-in EPR/EPDM check valve for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing. These units are self-priming up to 20 feet and are suitable for high pressure applications such as dewatering, sprinkler/booster, irrigation, and fire protection. Units are close coupled and are available in 7-1/2 to 10 horsepower TEFC electric motors. • Cast Iron Construction with Aluminum Impeller • Viton Mechanical Seal with EPR/EPDM Check Valve and O-Rings • 2” NPT Suction and Discharge Ports • Maximum Temperature 180° F • Maximum Flow 122 GPM • Max Head 270 Ft. (116 psi) • Self-Priming to 20 Ft. • Closed Vane Aluminum Impeller Designed for High Pressure Performancee • 7-1/2 to 10 HP TEFC, Single and Three Phase Motors • Optional Mounting Base Available (A200-90)
