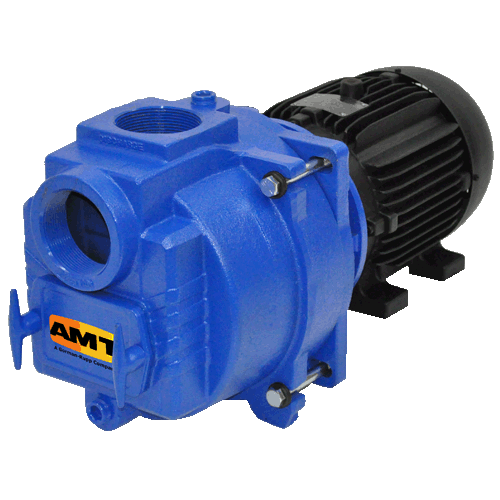

Description AMT Cast Iron Sewage/Trash pumps are designed for trouble free and economical handling of solids laden liquids and slurries. Pumps are available in three NPT port sizes: 2″, 3″ or 4″. Cast iron construction with two vane stainless steel self-cleaning impellers, silicon carbide mechanical seals for abrasion resistance and Buna-N O-rings and check valves. Built-in check valve allows pump to reprime automatically in an open system without the foot valve. The solids handling capabilities of the pumps make them ideally suited for a variety of industrial applications including: sewage treatment, canneries, chemical processing, wineries, tanneries, meat packing, breweries, pulp, wood chips, process water, sludge and slime, waste water, white water and other applications. These sewage/trash pumps will easily handle liquids containing sewage, stones, sticks, mud and other solids. Minimum liquid requirement must be above 85% — maximum 15% solids. Failure to do so may damage pump and void warranty. • Cast Iron Construction • Silicon Carbide/Viton® Mechanical Seal • 2˝, 3˝ & 4˝ NPT Ports Sizes • Maximum Temperature 180° F • Self-Priming to 20 Ft. • Stainless Steel Semi-Open, Clog Resistant Impeller • Buna-N Check Valve and O-Ring • Removable Cast Iron Volute/Wearplate • Easy Cleanout Design • 3˝ & 4˝ Models Feature Front Cleanout • Pull-from-Rear Design • Available with 3 to 15 HP Totally Enclosed Fan Cooled (TEFC) Electric Motors
