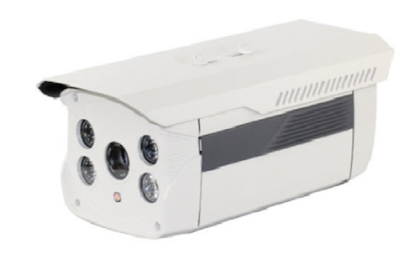

AVM80E200 - WDR, Low-Stream, 1080p IP Camera

Model NO. AVM80E200 AVM80P200 AVM80H200 AVM80M130 AVM80P130 AVM80H130 AVM80H100   Image Sensor IMX222 IMX22 IMX222  IMX238 AR0130 IMX238 OV9712S Main processor A5S66 DM368 HI3516C DM365 DM365 HI3518C HI3518E Resolution 1080P 1080P 1080P 960P 960P 960P 720P Effective Pixels  1920(H)*1080(V)  1920(H)*1080(V)  1920(H)*1080(V)  1280(H)*960(V)  1280(H)*960(V)  1280(H)*960(V)  1280(H)*720(V) TV System PAL/NTSC Electronic Shutter Time Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec Sync System Internal Usable Illumination 0.01Lux 0.01Lux 0.01Lux 0.01Lux 0.1Lux 0.01Lux 0.1Lux S/N Ratio ≥52dB Scanning System Progressive Video Output Network Lens Focus Length CS Lens 8mm Focus Control Fixed Lens Type Fixed Pixels 3M Pixels 3M Pixels 3M Pixels 2M Pixels 2M Pixels 2M Pixels 2M Pixels Night Vision Infrared LED ￠42X4PCS Infrared Distance 80M IR Status Under 10 Lux By CDS IR Power On CDS Auto Control Network Ethernet RJ-45 (10/100Base-T) Protocol IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS ONVIF Support ONVIF 2.4 P2P YES, Support QR Code POE Optional, Support IEEE 802.3af WIFI N/A  Video Delay  0.3S (Within the Lan) Main Stream  1920*1080  1920*1080  1920*1080 1280*960 1280*960 1280*960 1280*720 Sub Stream 704*576,  352*288 704*576,  352*288 704*576,  352*288 704*576,  352*288 704*576,  352*288 704*576,  352*288 704*576,  352*288 IE Brower  IE6-11  Smart Phone iPhone, iPad, Android, Android Pad Camera Features Day/Night Color/ B&W (IR-CUT ) Compression  H.264/JPEG,Support record AVI format. Image Config Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control) Motion Detection Support   Privacy  Masking 3 Rectangular Zone WDR YES NO NO NO NO NO NO Recording Mode NVR/NAS/CMS/Web Language Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian General Housing Weatherproof , IP66 Anti-cut Bracket NO, Without Bracket IR Cut Filter YES Operation Temperature -10℃ ~  50℃ RH95% Max Storage Temperature -20℃ ~  60℃ RH95% Max Power Source DC12V±10%, 1000mA Dimension 275(W)x113(H) x139(D)mm Weight 2.0kgs
