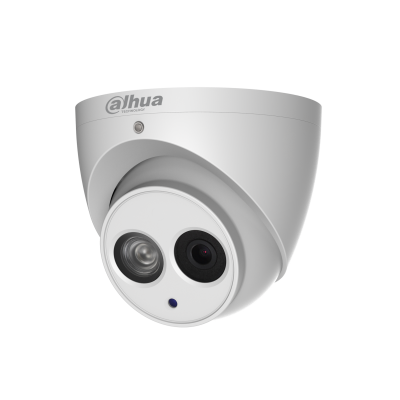

IPC-HDW4631EM-ASE - 6MP IP Dome Camera

Camera Image Sensor 1/2.9” 6Megapixel progressive scan CMOS Effective Pixels 3072(H) x 2048(V) RAM/ROM 512MB/32MB Scanning System Progressive Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s Minimum Illumination 0.04Lux/F1.6( Color,1/3s,30IRE) 0.4Lux/F1.6( Color,1/30s,30IRE) 0Lux/F1.6(IR on) S/N Ratio More than 50dB IR Distance Distance up to 50m (164ft) IR On/Off Control Auto/ Manual IR LEDs 1 Lens Lens Type Fixed Mount Type Board-in Focal Length 2.8mm (3.6mm optional) Max. Aperture F1.6(F1.6) Angle of View H: 98° (69°), V: 67° (48°) Optical Zoom N/A Focus Control Fixed Close Focus Distance 0.9m (1.7m) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 69m(226ft) 28m(92ft) 14m(46ft) 7m(23ft) 3.6 mm 89m(292ft) 36m(118ft) 18m(59ft) 9m(30ft) Pan/Tilt/Rotation Pan/Tilt/Rotation Range Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚ Intelligence IVS Tripwire, Intrusion, Object Abandoned/Missing Advanced Intelligent Functions Face Detection Video Compression H.265 /H.265/H.264 /H.264 Streaming Capability 3 Streams Resolution (3072×2048)/(3072×1728)/(2592×1944)/(2688×1520)/(2560×1440)/(2304×1296)/1080P(1920×1080)/SXGA(1280×1024)/1.3M(1280× 960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) Frame Rate Main Stream: 6MP (1~20fps), 4MP(1~25/30fps) Sub Stream: D1(1~25/30fps) Third Stream: 1080P(1~25/30fps) Bit Rate Control CBR/VBR Bit Rate H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps Day/Night Auto(ICR) / Color / B/W BLC Mode BLC / HLC / WDR(120dB) White Balance Auto/Natural/Street Lamp/Outdoor/Manual Gain Control Auto/Manual Noise Reduction 3D DNR Motion Detetion Off / On (4 Zone, Rectangle) Region of Interest Off / On (4 Zone) Electronic Image Stabilization (EIS) N/A Smart IR Support Defog N/A Digital Zoom 16x Flip 0°/90°/180°/270° Mirror Off / On Privacy Masking Off / On (4 Area, Rectangle) Audio Compression G.711a/ G.711Mu/ AAC/ G.726 Network Ethernet RJ-45 (10/100Base-T) Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP Interoperability ONVIF, PSIA, CGI Streaming Method Unicast / Multicast Max. User Access 10 Users /20 Users Edge Storage NAS Local PC for instant recording Mirco SD card 128GB Web Viewer IE, Chrome, Firefox, Safari Management Software Smart PSS, DSS, Easy4ip Smart Phone IOS, Android Certifications Certifications CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B Interface Video Interface N/A Audio Interface Built-in Mic RS485 N/A Alarm N/A Electrical Power Supply DC12V, PoE (802.3af)(Class 0) Power Consumption <6W Environmental Operating Conditions -30° C ~ 60° C (-22° F ~ 140° F) / Less than 95% RH Strorage Conditions -30° C ~ 60° C (-22° F ~ 140° F) / Less than 95% RH Ingress Protection IP67 Vandal Resistance N/A Construction Casing Metal Dimensions Φ106mm×93.7mm (4.17”×3.69”) Net Weight 0.47Kg (1.04lb) Gross Weight 0.65Kg (1.43lb)
