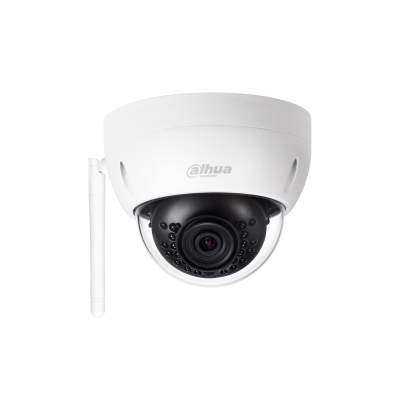

IPC-HDBW1320E-W-0280B - 3MPix IP WiFi Dome Camera

Camera Image Sensor 1/3” 3Megapixel progresive CMOS Effective Pixels 2304(H)x1536(V) RAM/ROM 256MB/16MB Scanning System Progressive Minimum Illumination 0.1Lux/F2.0(Color), 0Lux/F2.0(IR on) S/N Ratio More than 50dB IR Distance Distance up to 30m(98ft) IR On/Off Control Auto/ Manual IR LEDs 24 Lens Lens Type Fixed Mount Type Board-in Focal Length 2.8 mm (3.6 mm optional) Max. Aperture F2.0/F2.0 Angle of View H:100°/77°, V:55°/42° Focus Control Fixed Close Focus Distance N/A PTZ Pan/Tilt Range Pan:0° ~355° ;Tilt:0° ~55° ;Rotation:0° ~355° Video Compression H.264/H.264B/H.264H/MJPEG Streaming Capability 2 Streams Resolution 3M(2304×1296)/1080P(1920×1080)/ 1.3M(1280×960)/720P(1280×720)/720P(1280×720)/ VGA(640×480)/QVGA(320×240) Frame Rate 3M(1 ~ 20fps)/2M (1 ~ 25/30fps) VGA(1 ~ 25/30fps) Bit Rate Control CBR/VBR Bit Rate H264:32K ~ 10240Kbps Day/Night Auto(ICR) / Color / B/W BLC Mode BLC / HLC / DWDR White Balance Auto/Natural/Street Lamp/Outdoor/Manual Gain Control Auto/Manual Noise Reduction 3D DNR Motion Detetion Off / On (4 Zone, Rectangle) Region of Interest Off / On (4 Zone) Electronic Image Support Smart IR Support Digital Zoom 16x Flip 0°/90°/180°/270° Mirror Off / On Privacy Masking Off / On (4 Area, Rectangle) Audio Compression N/A Network Ethernet RJ-45 (10/100Base-T) Wi-Fi Wi-Fi(IEEE802.11b/g/n), 50m(open field) Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP; Interoperability ONVIF, PSIA, CGI Streaming Method Unicast / Multicast Max. User Access 10 Users/20 Users Edge Storage NAS(Network Attached Storage),Local PC for instant recording, 128GB Web Viewer IE, Chrome, Firefox, Safari Management Software Smart PSS, DSS,Easy4ip Smart Phone iPhone, iPad, Android Phone Certifications Certifications CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B Interface Video Interface N/A Audio Interface N/A RS485 N/A Alarm N/A Electrical Power Supply DC12V Power Consumption <5.5W Environmental Operating Conditions -10° C ~ 50° C (-14° F ~ 122° F) / Less than 95% RH Strorage Conditions -10° C ~ 50° C (14° F ~ 122° F) / Less than 95% RH Ingress Protection IP67 Vandal Resistance IK10 Construction Casing Metal Dimensions Φ109.9mm × 81mm (4.33" x 3.19") Net Weight 0.34Kg (0.75lb) Gross Weight 0.47Kg (1.04lb)
