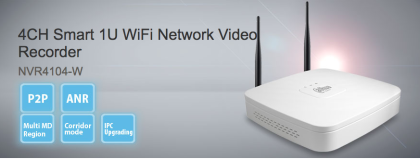

NVR4104-W - 4ch WiFi NVR

Model DH-NVR4104-W System Main Processor Dual-core embedded processor Operating System Embedded LINUX Video& Audio IP Camera Input 4 channel Two-way Talk 1 channel Input, 1 channel Output, RCA Display Interface 1 HDMI, 1 VGA Resolution 1920×1080, 1280×1024, 1280×720, 1024×768 Display Split 1/4 OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording Recording Compression H.264/MJPEG Resolution 5Mp(2560×1920)/3Mp(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480) Record Rate 80Mbps Bit Rate 48~ 8192kbps Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec Video Detection Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank Playback & Backup Sync Playback 1/4 Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom Backup Mode USB Device/Network/Internal SATA burner Network Ethernet 1 RJ-45 port (10/100Mbps) Wireless Network Built-in Wifi module, 2 WiFi Antenna Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) Max. User Access 128 users Smart Phone iPhone, iPad, Android Storage Internal HDD 1 SATA port, up to 4TB Auxiliary Interface USB 2 ports (2 Rear),USB2.0 General Power Supply DC12V/2A Power Consumption 10W(without HDD) Working Environment -10°C~ 55°C / 10%~90%RH / 86~106kpa Dimension (W×D×H) Smart 1U, 205mm×205mm×45mm Weight 0.5KG(without HDD)
