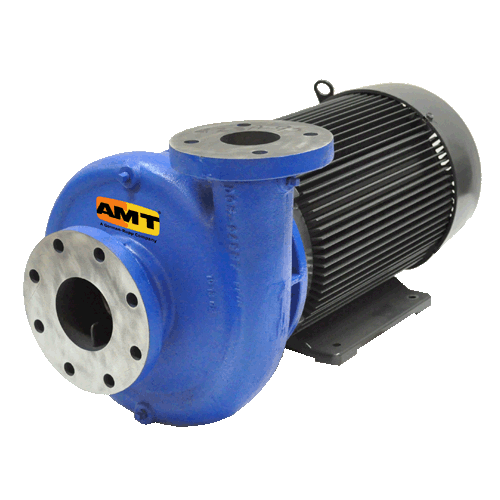

Description The AMT Cast Iron 1750 RPM Solids Handling End Suction Centrifugal pump delivers high efficiency performance that minimizes operation and energy costs. Built to last, each pump features a precision cast bronze impeller that is dynamically balanced to minimize vibration and maximize motor bearing life. Pull-from-rear design simplifies maintenance without disturbing piping connection. Gauge taps at the suction and discharge ports allow for system monitoring. Maximum 1/4″ diameter solids handling and optional seal flush/air relief valve is available for vertical installations. Pumps require a flooded suction and positive suction pressure. • Cast Iron Construction • Silicon Bronze Precision Cast Dynamically Balanced Impeller • Viton® Silicon Carbide/Carbon Mechanical Seal • Bronze Case Wear Ring • 4˝ x 3˝ 125 Lb. 8-Bolt Flanged Suction Port & 4-Bolt Flanged Discharge Port • Pull-From-Rear Design Permits Easy Servicing Without Disturbing Piping • 1/4˝ NPT Gauge Taps on Suction & Discharge Ports For System Monitoring • Bronze Shaft Sleeve to Protect Motor Shaft • Maximum Casing Pressure 175 PSI • Maximum Temperature 200° F • Includes Seal Flush/Air Relief Valve • Front Drain Plugs • TEFC JM NEMA Frame IE2/EPAC Energy Efficient Motors
