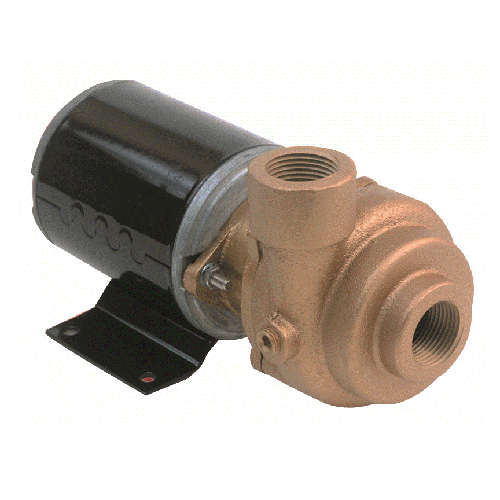

Description The AMT Model 3670-94 Naval Bronze Straight Centrifugal pump is designed for low pressure salt water wash down and recirculating applications. The pump has been sized for salt water (1.03 specific gravity) and feature provisions for the installation of a seal wash, front drain plug and pullfrom-rear design. The unit is driven by a 1/8 HP capacitor start induction motor (TEFC) with ball bearings and a stainless steel shaft. On/off switch and line cord are standard. The AMT Model 4860-97 Bronze Centrifugal pump is compact and designed for use in general dewatering, salt water applications in live well tanks, circulation and chemical transfer. This pump is fitted with a 1/8 HP, 12 Volt DC, 3700 RPM motor. Pumps are not self-priming and require flooded suction. • Bronze Construction • Buna-N Mechanical Seal and O-Ring • Maximum Working Pressure 50 PSI • Maximum Temperature 180° F • Maximum Flow 17 GPM • Maximum Head 12 Ft. • Self-Cleaning, Semi-Open Impeller • Totally Enclosed Motors • 12 Volt DC or 115 VAC Motor, Depending on Model
