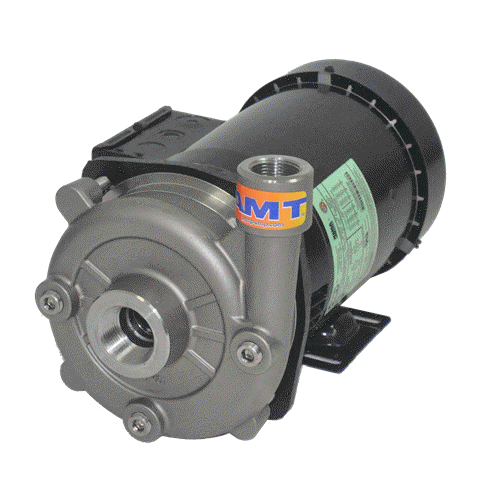

Description AMT Straight Centrifugal Pumps are designed for continuous-duty OEM, Industrial/Commercial and Processing applications including dirty water circulation, liquids containing particles and solids up to 1/8” diameter for chemical processing and liquid transfer. These straight centrifugal heavy duty industrial pumps are available in a variety of Construction and seal materials to meet your specification. Pull from rear design for easy servicing without disturbing piping, in addition to a two piece impeller for easy clean out. Pumps are closed coupled to Totally Enclosed Fan Cooled (TEFC) motors. Pumps are not self-priming and require flooded suction. • 300 Series Investment Cast Stainless Steel and Cast Iron Construction with Stainless Steel Impeller • Viton®/SIC Mechanical Seal and VIton O-Rings • 2 Piece Impeller allows for Easy Servicing and Cleanout • Optional EPR/EDPM Seals Available • Discharge Port Rotates in 90° Increments • 502 Series: 1-1/4˝ x 1˝ Ports • 503 Series: 1-1/2˝ x 1-1/4˝ Ports • (3) Front Drain Plugs • Maximum Flow 156 GPM • Maximum Head 127 Ft. (55 PSI)
